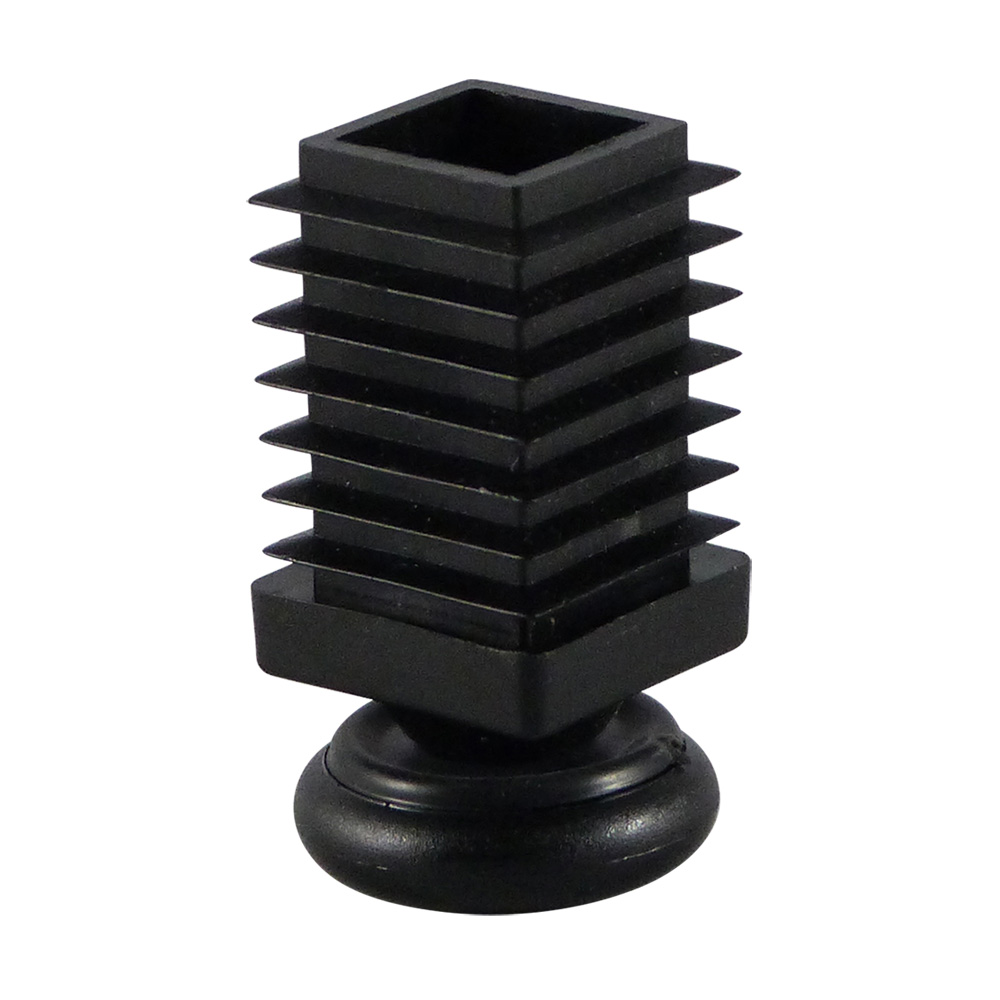

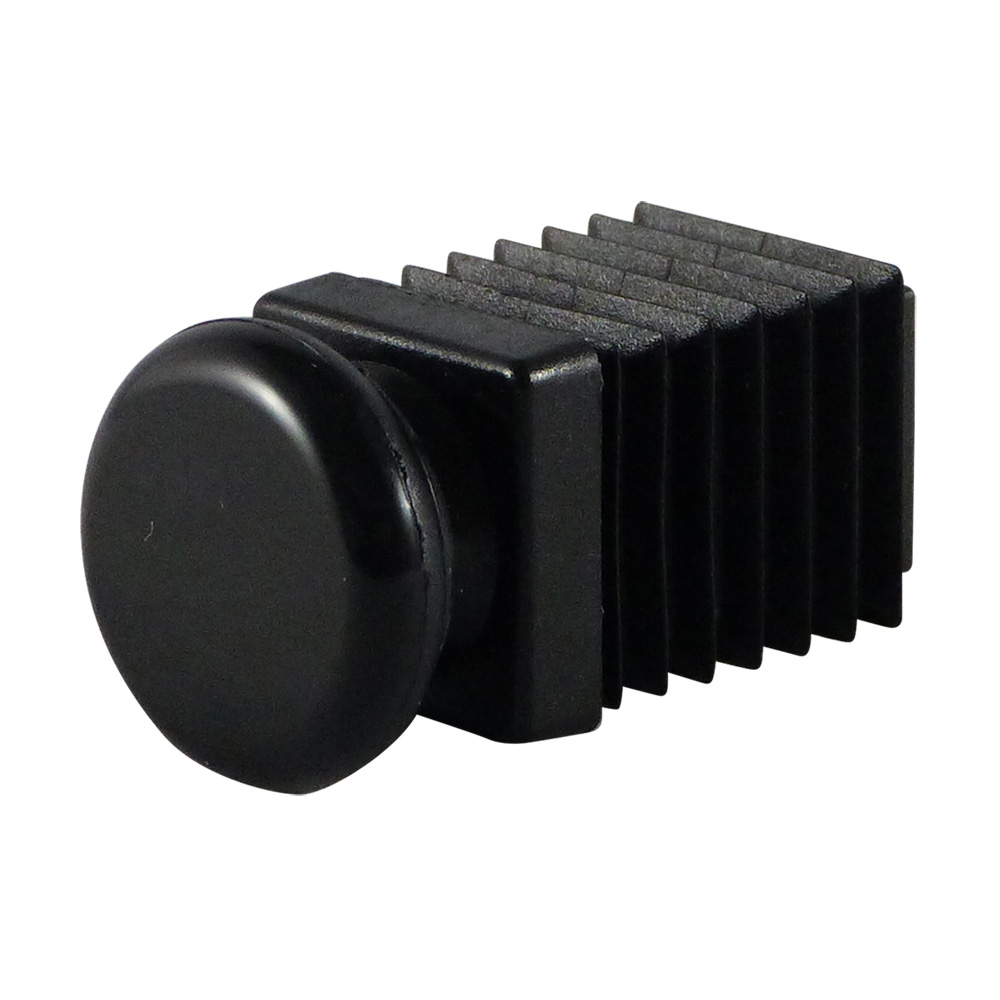

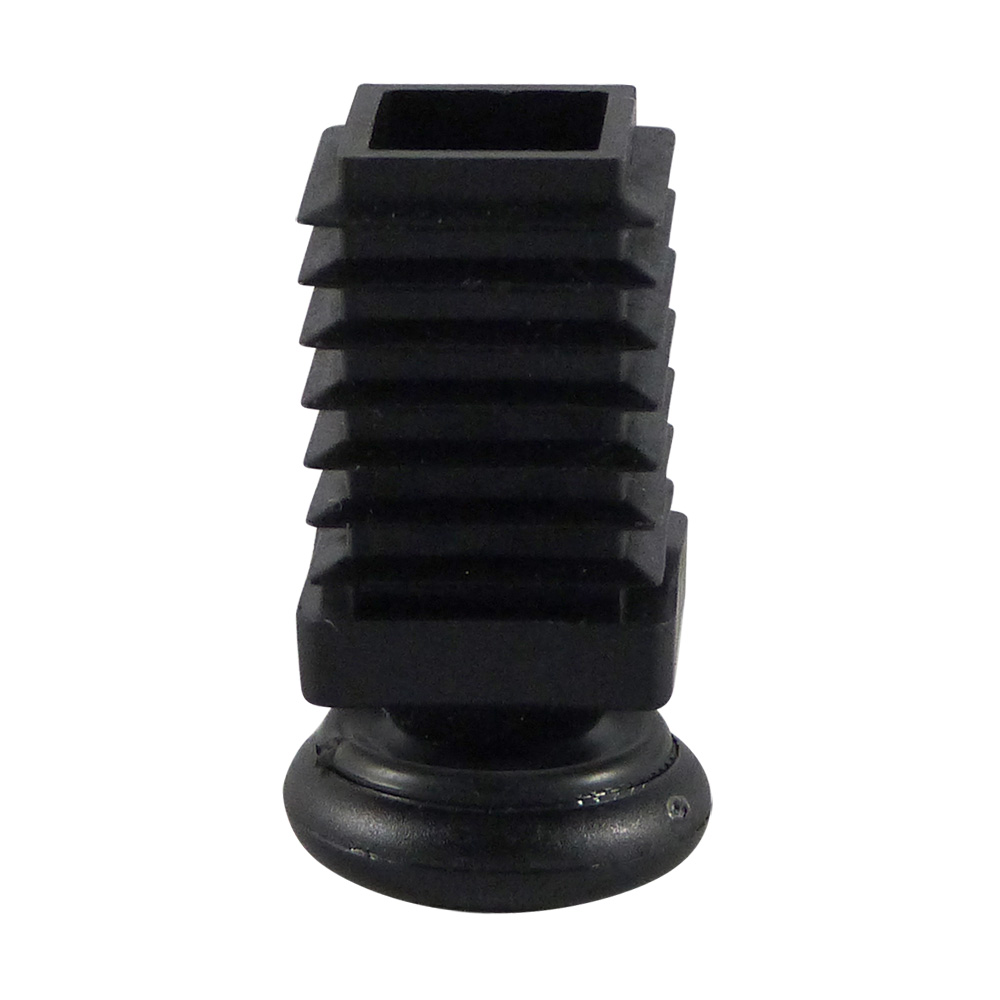

2.1.12 Tiltsert end caps with PA pad for square tube
Product information
- Square end cap inserts with a round tilting base and nylon pad are available for square chair legs from a size of 20 x 20 mm to 25 x 25 mm inclusive, with a wall thickness of 1.5 mm
- Base diameters from Ø 23 mm to Ø 30 mm inclusive
- Maximum angles of inclination: 20° from vertical
- These end cap inserts are ideal as a glide under chairs with angled legs that are typically used for major interior design projects, the hospitality industry, hospitals and schools.
Material: end cap - PE (polyethylene), pad - PA (polyamide), connector - steel
Colour: black
Legend

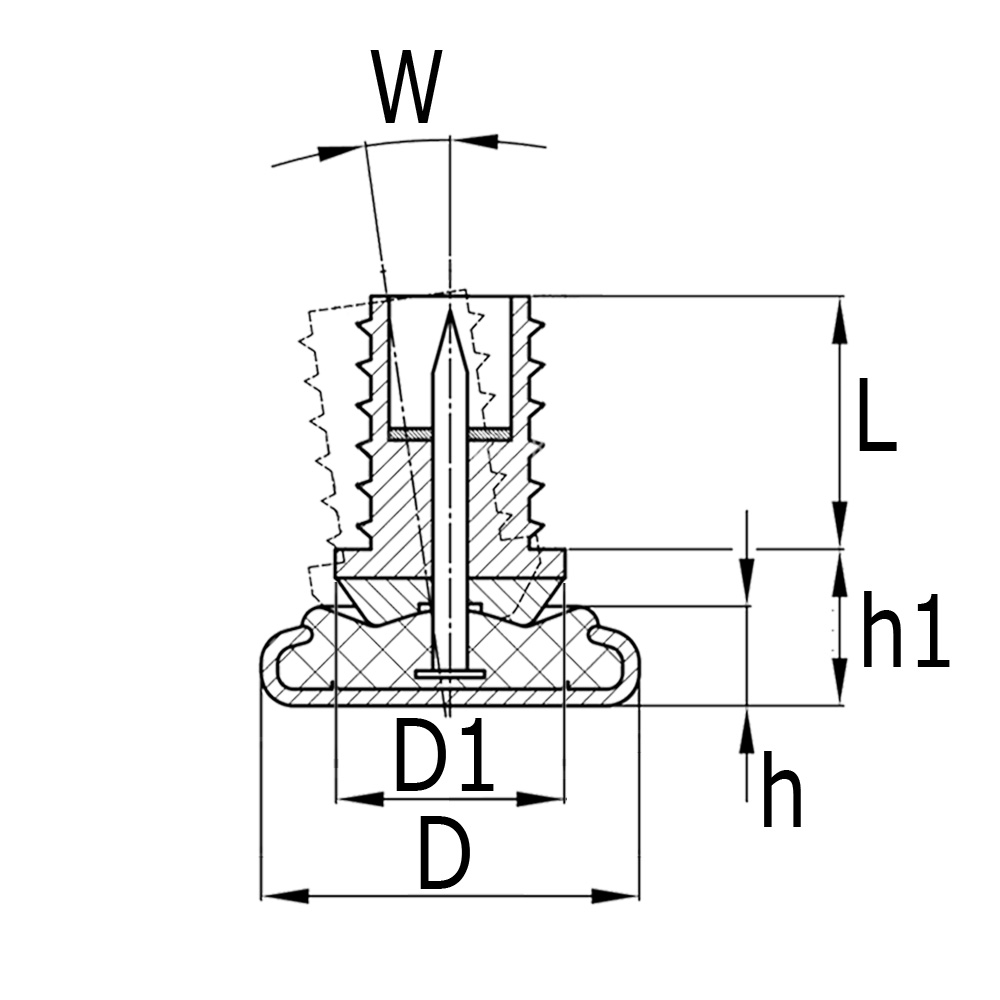

D=foot Ø, D1=collar size, h=foot height, h1=ball joint + foot, L=shaft length, Tube size=external tube dimension, Version=tube wall thickness, W=angle of inclination in °
